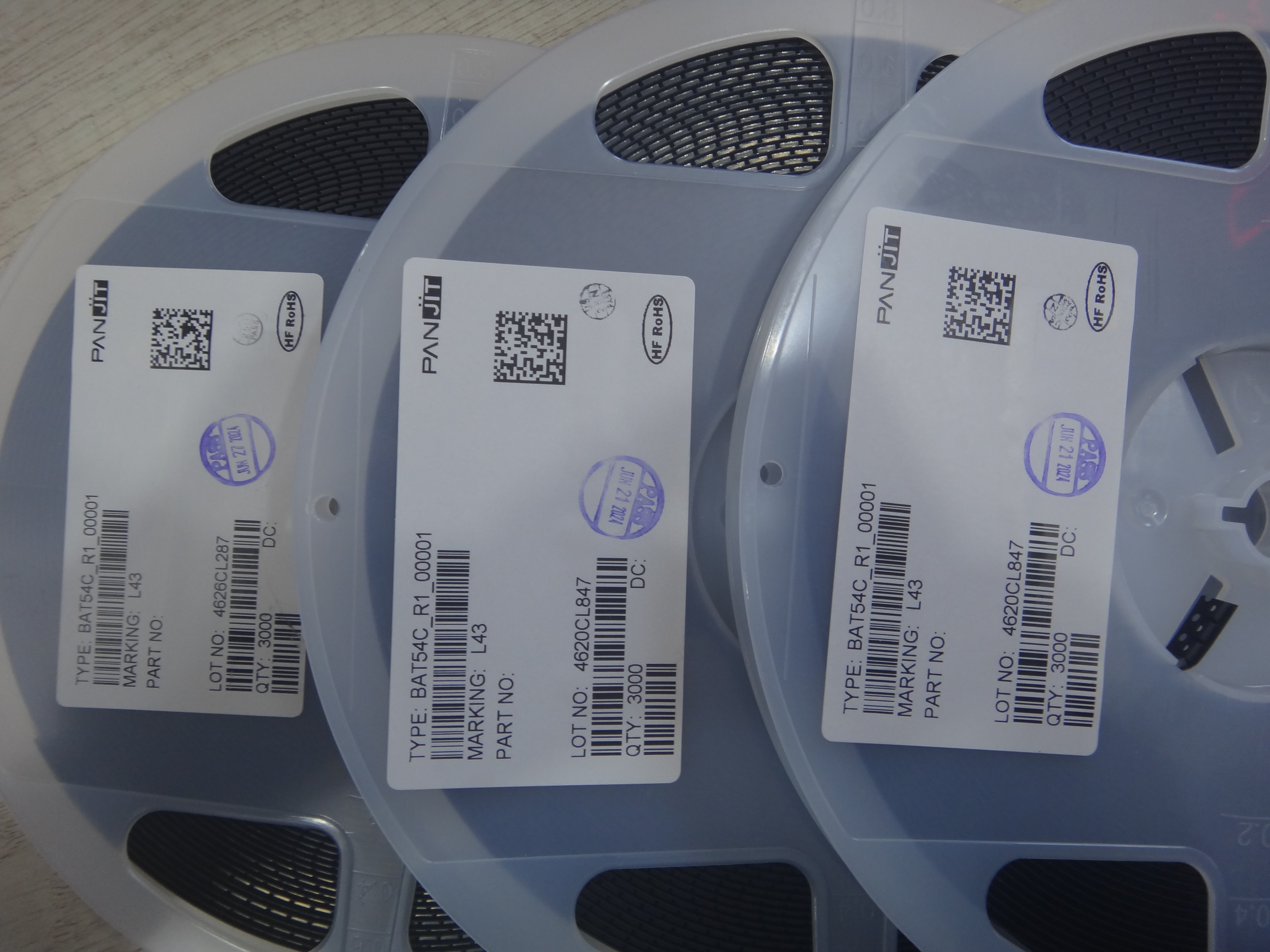

Model:BAT54C_R1_00001

Model:BAT54C_R1_00001
Manufacturer：PANJIT International Inc.
Stocks：2000
Describe：

Common cathode double Schottky barrier switch diode, using SOT-23 surface mount packaging. This device integrates two independent Schottky diodes within a single package, with the anodes being independent and the cathodes connected. Reverse voltage is 30V, forward current is 200mA, forward surge peak current is 600mA, and forward drop is 600mV @ 100mA. It has fast switching characteristics, with a working junction temperature range of -55°C to +125°C. It is suitable for high-speed switching circuits, polarity protection, logic circuits, and high-frequency rectification applications. It is an ideal choice for general small-signal Schottky diodes.

Features ：

• Diode configuration: 1 pair of common cathode (Common Cathode), dual diodes, anode is independent, cathode is connected.

• Reverse voltage (Vr): 30V

• Forward current (If): 200mA

• Forward surge current (Ifsm): 600mA

• Forward voltage drop (Vf): 600 mV @ 100 mA

• Reverse current (Ir): 2 µA @ 25V

• Technology type: Schottky, featuring fast switching characteristics

• Power dissipation (Pd): 225 mW

• Operating temperature range: Junction temperature -55°C to +125°C

• Compact package: SOT-23 (TO-236-3, SC-59), surface mount, size approximately 3.0mm × 1.3mm

• Environmental compliance: Meets RoHS standards, lead-free, MSL grade 1 (no restrictions)

• Product status: Active (In production)

Application：

• High-speed switching circuit

• Polarity protection and reverse voltage protection

• Logic circuit level conversion and clamping

• High-frequency rectification and demodulation circuit

• DC-DC converter commutation

• Power management of portable devices

• General-purpose small-signal Schottky diode applications
