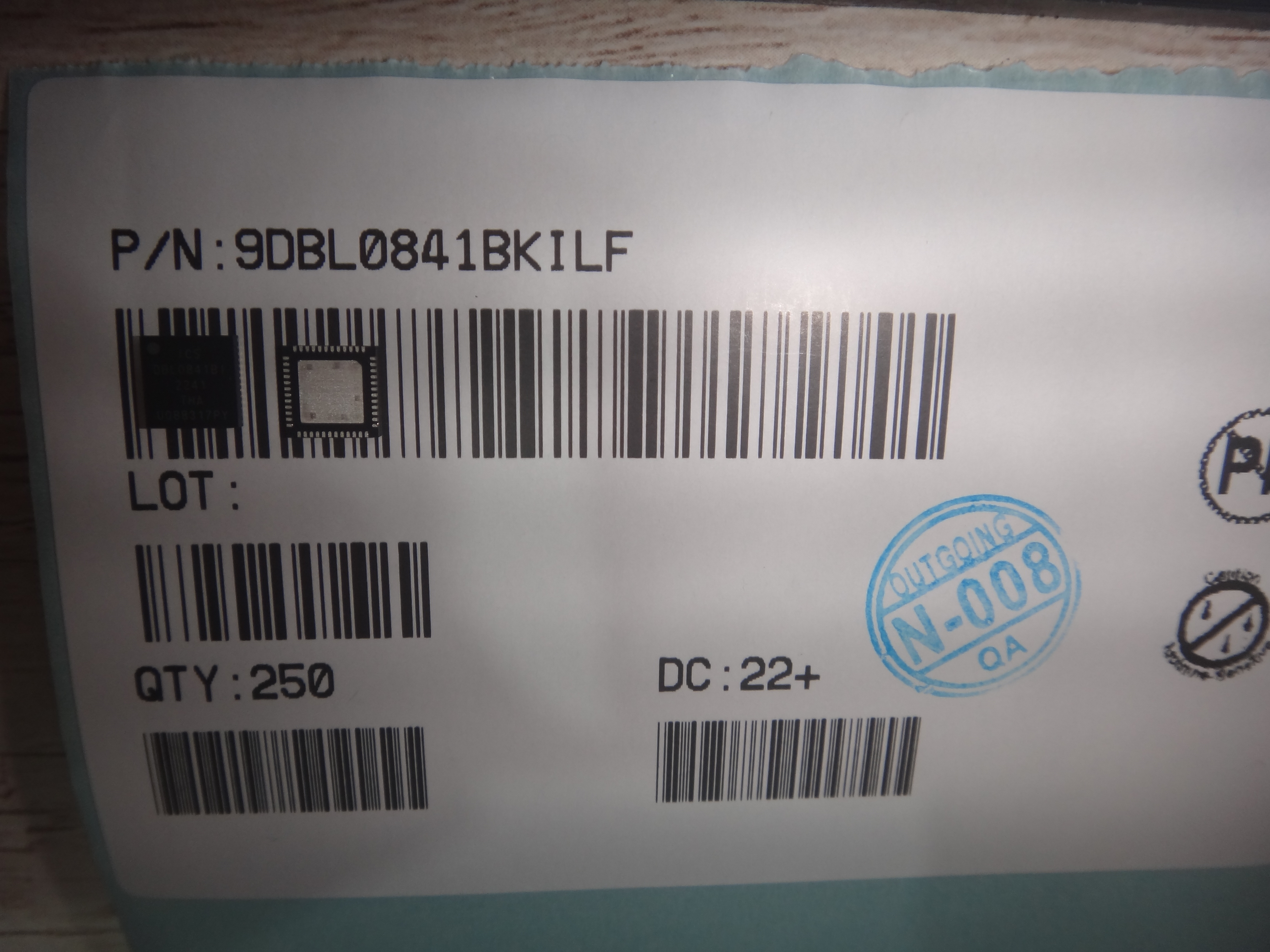

Model:9DBL0841BKILF
Model:9DBL0841BKILF
Manufacturer：
Stocks：20000
Describe：
8-channel, 3.3V PCIe zero-delay/fanout clock buffer. It receives one HCSL input clock and generates 8 low-power HCSL (LP-HCSL) outputs. It supports PCIe Gen1 to Gen5 and provides two working modes of zero-delay buffering or fanout, which are used for clock distribution and signal shaping in systems such as servers and storage devices.
Features ：
• High performance: PCIe Gen5 additional clock (CC) jitter < 60fs RMS (fanout mode).
• Low power output: 8 LP-HCSL outputs, each pair of outputs can omit 4 external resistors, simplifying the design.
• Flexible configuration: Supports pin or SMBus configuration, each output has a dedicated output enable (OE#) pin, compatible with spread-spectrum clock.
• Wide frequency range: Supports operating frequencies from 1MHz to 200MHz.
• Industrial temperature: Operating temperature range -40°C ~ +85°C.
• Compact packaging: 48-VFQFPN (6x6mm) surface mount packaging, with exposed pads.
Application：
• PCIe expansion card
• NVMe storage device
• Network accelerator
• Industrial control / embedded system
|
Renesas Electronics Corporation |
