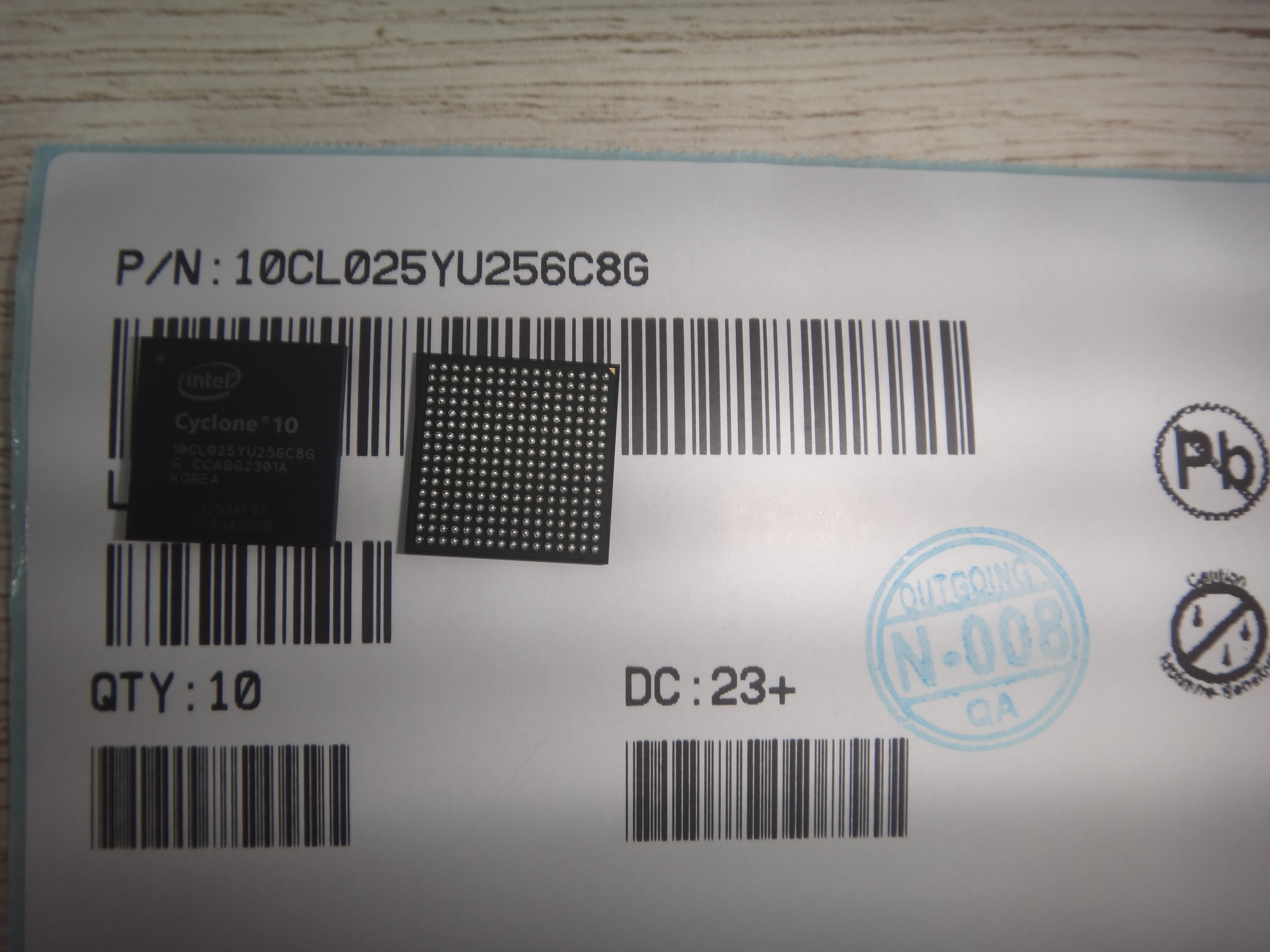

Model:10CL025YU256C8G
Model:10CL025YU256C8G
Manufacturer： Intel (Altera)
Stocks：20000
Describe：
Field Programmable Gate Array (FPGA). It is a logic chip that can be programmed and configured through hardware description languages (such as Verilog or VHDL), allowing users to flexibly implement custom digital logic circuits at the hardware level according to specific application requirements. It is commonly used for prototype verification, digital signal processing, interface expansion, and various embedded systems.
Features ：
• Logical resources: 24,624 logic units (Logic Elements), 1,539 logic array blocks (LABs/CLBs).
• Storage and I/O: 608,256 bits of embedded RAM (594Kbit), 150 user I/O pins.
• Core voltage: 1.2V.
• Operating temperature: Commercial grade temperature range 0°C ~ +85°C.
• Packaging: 256-UBGA (14x14mm) surface mount packaging.
• Series features: The Cyclone 10 LP series has been optimized for low cost and low static power consumption, making it highly suitable for high-volume and cost-sensitive applications.
Application：
• Industry and automobiles: Motor control, PLC, industrial automation, battery management system (BMS).
• Communication infrastructure: 5G base stations, data compression and encryption, protocol processing.
• Computing and storage: I/O expansion, chip-to-chip interface.
• Consumer and medical: CMOS image sensor interface, medical equipment, intelligent energy.
