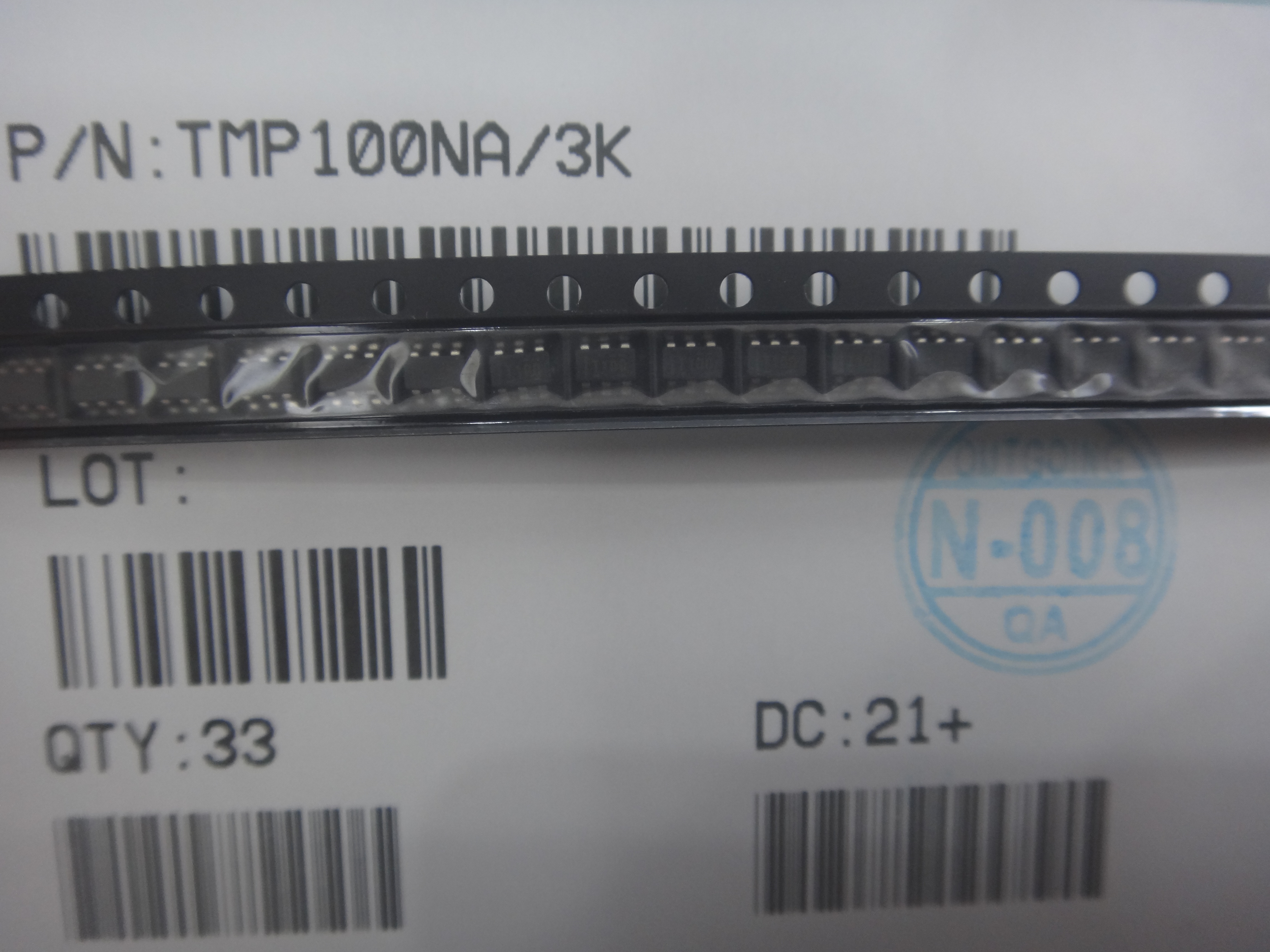

Model:TMP100NA3K

Model:TMP100NA3K
Manufacturer： Texas Instruments
Stocks：2000
Describe：

A low-power digital temperature sensor with I2C/SMBus interface, packaged in SOT-23-6. This device is a high-precision, low-power CMOS digital temperature sensor. It integrates an analog-to-digital converter and digital signal processing circuits on the chip, allowing the temperature to be directly converted into a digital signal output. The temperature measurement range is from -55°C to +125°C, with a resolution of 12 bits (0.0625°C) and an accuracy of ±2°C. The operating voltage range is 2.7V to 5.5V, and the typical operating current is only 75µA. The standby current is as low as 0.1µA in the off mode. It supports 9 to 12-bit programmable resolution, has single conversion mode, off mode and over-temperature alarm functions, and can be conveniently communicated with the microcontroller via I²C/SMBus interface.

Features ：

• Wide temperature measurement range: -55°C to +125°C, covering industrial and consumer applications

• High precision: ±2°C accuracy (-25°C to +85°C), ±3°C accuracy (-55°C to +125°C)

• Programmable resolution: Supports resolution selection from 9 to 12 bits. In the 12-bit mode, the resolution reaches 0.0625°C.

• Low power consumption: Operating current ranges from 45µA to 75µA (typical value), and the standby current in the off mode is only 0.1µA.

• Wide operating voltage: 2.7V ~ 5.5V. Single power supply, compatible with 3.3V and 5V systems.

• Digital interface: I²C/SMBus compatible, two-wire serial interface, capable of supporting up to 8 devices sharing the same bus.

• Conversion time: 320ms (12-bit resolution mode)

• Key features: Single conversion mode, Shutdown mode, Over-temperature alarm output, Factory temperature calibration

• Package type: SOT-23-6, dimensions 2.9mm × 1.6mm × 1.45mm

• ESD protection: HBM human discharge model ±2000V, CDM charging device model ±200V

• Environmental compliance: Meets RoHS standards, lead-free, terminal surface treatment is NiPdAu (nickel-palladium-gold)

Application：

• Computer system thermal management (cooling monitoring for laptops and servers)

• Temperature Monitoring of Industrial Control Systems

• Temperature measurement of medical equipment

• Consumer electronic products (mobile phones, tablets, wearable devices)

• HVAC (Heating, Ventilation, and Air Conditioning) system

• Automotive electronics (cockpit temperature monitoring)

• Power management and battery management system

• IoT environment monitoring node
