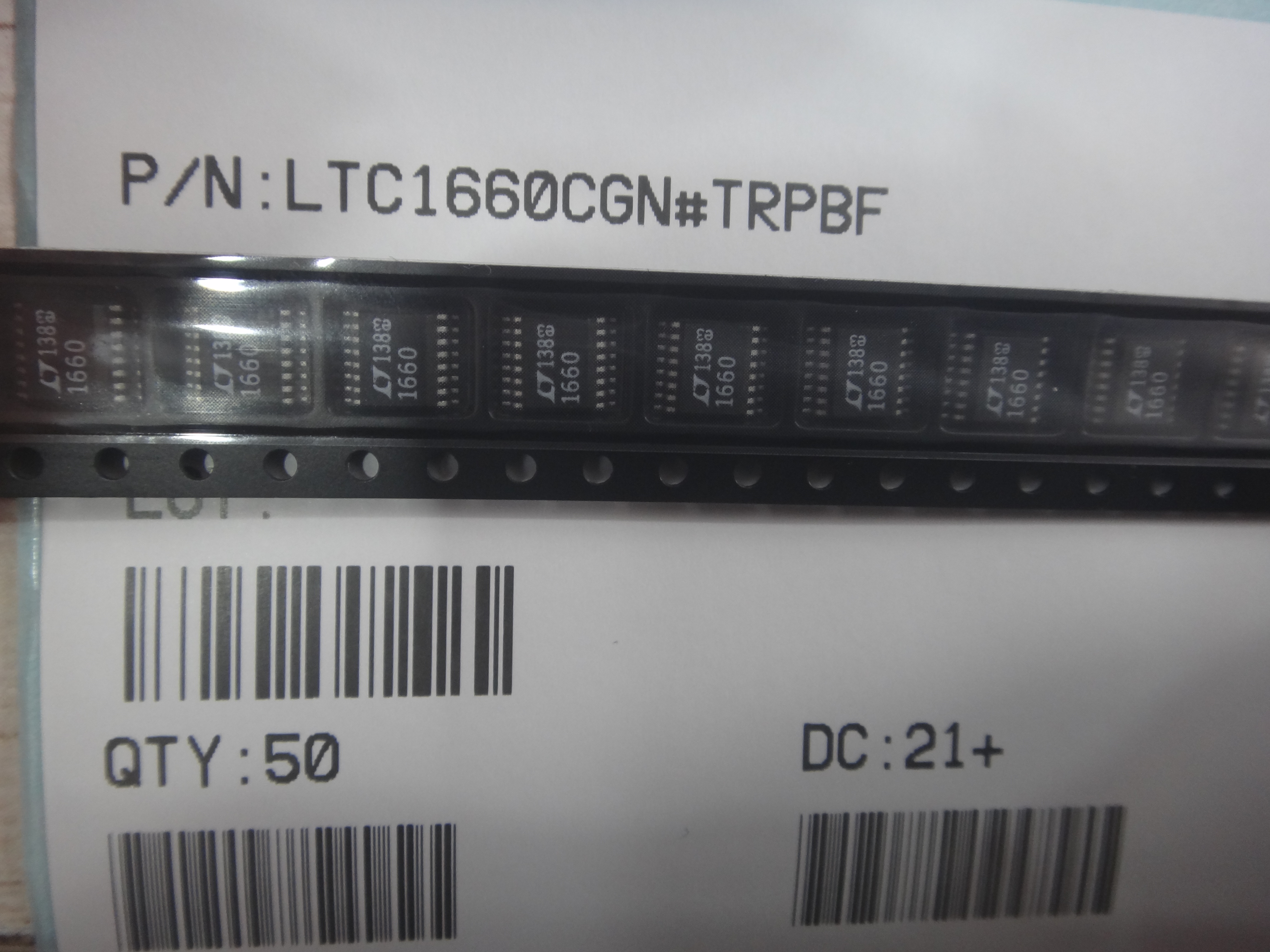

Model:LTC1660CGN#TRPBF
Model:LTC1660CGN#TRPBF
Manufacturer：Analog Devices Inc.
Stocks：20000
Describe：
Tape and Reel (TR) packaging, the standard package size is 2500 units per reel. Distributors also offer flexible options such as Cut Tape (CT).
Low-power, 8-channel, 10-bit digital-to-analog converter (DAC). The core function is to precisely convert the digital signal output by the microcontroller, through the SPI serial interface, into 8 independent analog voltage outputs.
Features ：
• High precision: 10-bit resolution, integral non-linearity (INL) is ±0.6 LSB, differential non-linearity (DNL) is ±0.2 LSB.
• Low power consumption: Each channel has a power consumption of only 56µA, and the total current in sleep mode can be reduced to 1µA, making it ideal for battery-powered devices.
• Wide operating voltage range: 2.7V to 5.5V single power supply, with an output of rail-to-rail voltage.
• Stability time: 30µs (typical value), capable of driving a capacitance load of up to 1000pF.
• Packaging: 16-pin SSOP-16 surface mount package, compact in size.
• Operating temperature: 0°C to +70°C (industrial grade).
Application：
It is widely used in portable or low-power devices that require multiple precise analog voltage outputs, such as: mobile communication equipment, remote industrial sensors, portable instruments, automatic calibration circuits, and programmable voltage sources/adjusters, etc.
