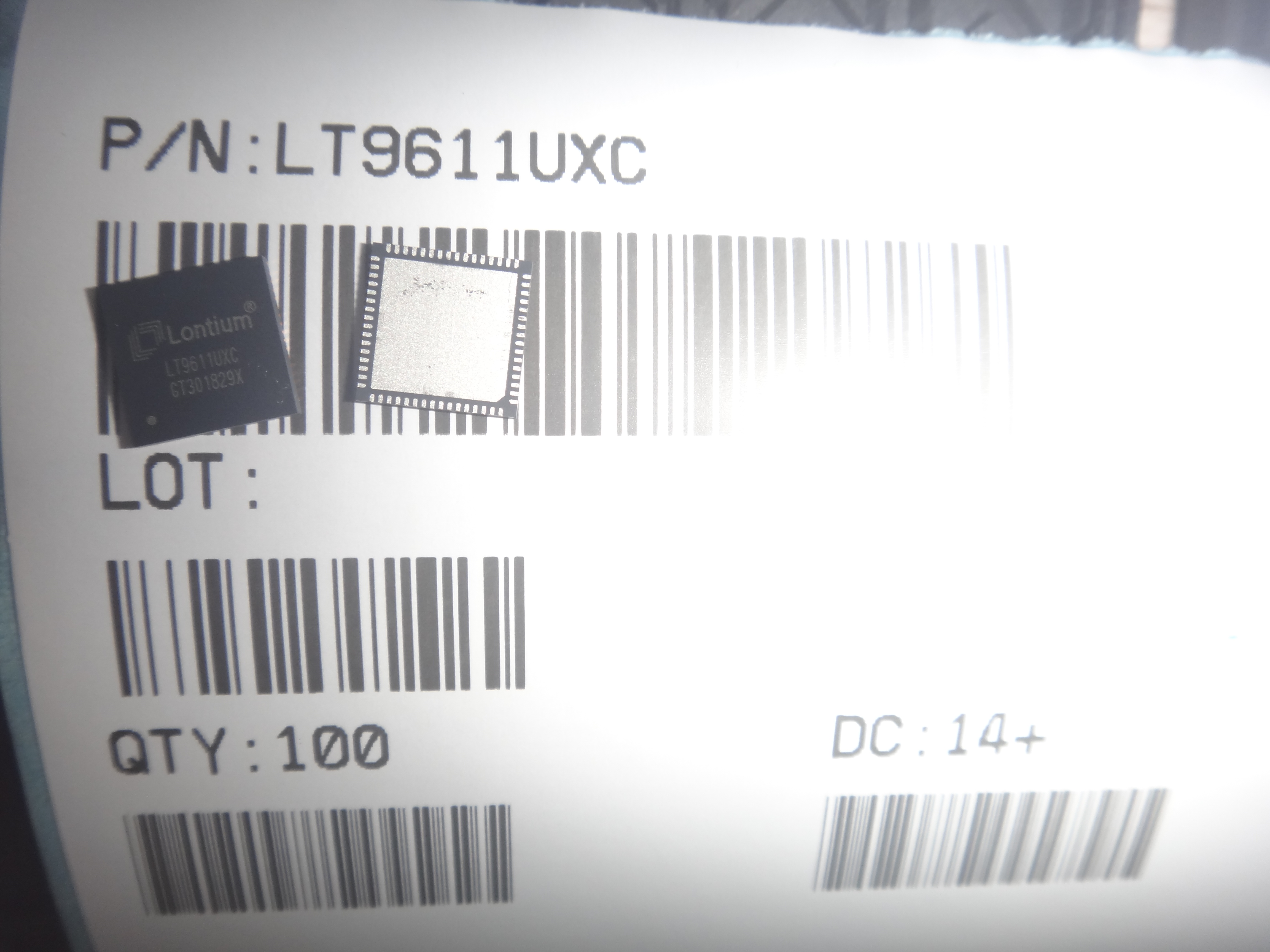

Model:LT9611UXC
Model:LT9611UXC
Manufacturer：Lontium Semiconductor
Stocks：20000
Describe：
Tray.
MIPI DSI/CSI to HDMI 2.0 Bridge Chip. It converts the MIPI signals from the application processor (such as mobile devices, camera modules) into standard HDMI signals for output, and can simultaneously handle audio to achieve synchronous transmission of audio and video.
Features ：
• High-performance video conversion: Supports single/dual-port MIPI DSI/CSI input, with data rate up to 2Gbps/channel and total bandwidth up to 16Gbps; HDMI 2.0 output supports data rate up to 6Gbps, enabling stable transmission of ultra-high-definition 4k@60Hz video.
• Built-in video processing functions: Integrates DSC decoder (supports up to 1:3 visual lossless decompression), supports flexible video data mapping, effectively reducing bandwidth requirements and power consumption.
• Complete audio support: Provides I2S and SPDIF digital audio interfaces, supports LPCM and compressed audio formats, with the highest sampling rate of 192kHz.
• Industrial-grade operating temperature: -40℃ ~ +85℃, suitable for various harsh environments.
• Compact packaging: Uses QFN-64 (7.5x7.5mm) packaging and integrates embedded SPI flash memory for firmware storage, simplifying system design.
Application：
It is widely used in various devices that require video signal conversion and bridging, such as:
• Consumer electronics: set-top boxes, smart TV boxes (PTV Box), DVD/Blu-ray players.
• Embedded systems: industrial computers, portable devices (such as smart phones, tablet computers for extended display).
• Automotive electronics: in-vehicle infotainment systems, rear-seat entertainment displays.
• Other fields: video surveillance, medical imaging, digital signage, etc.
