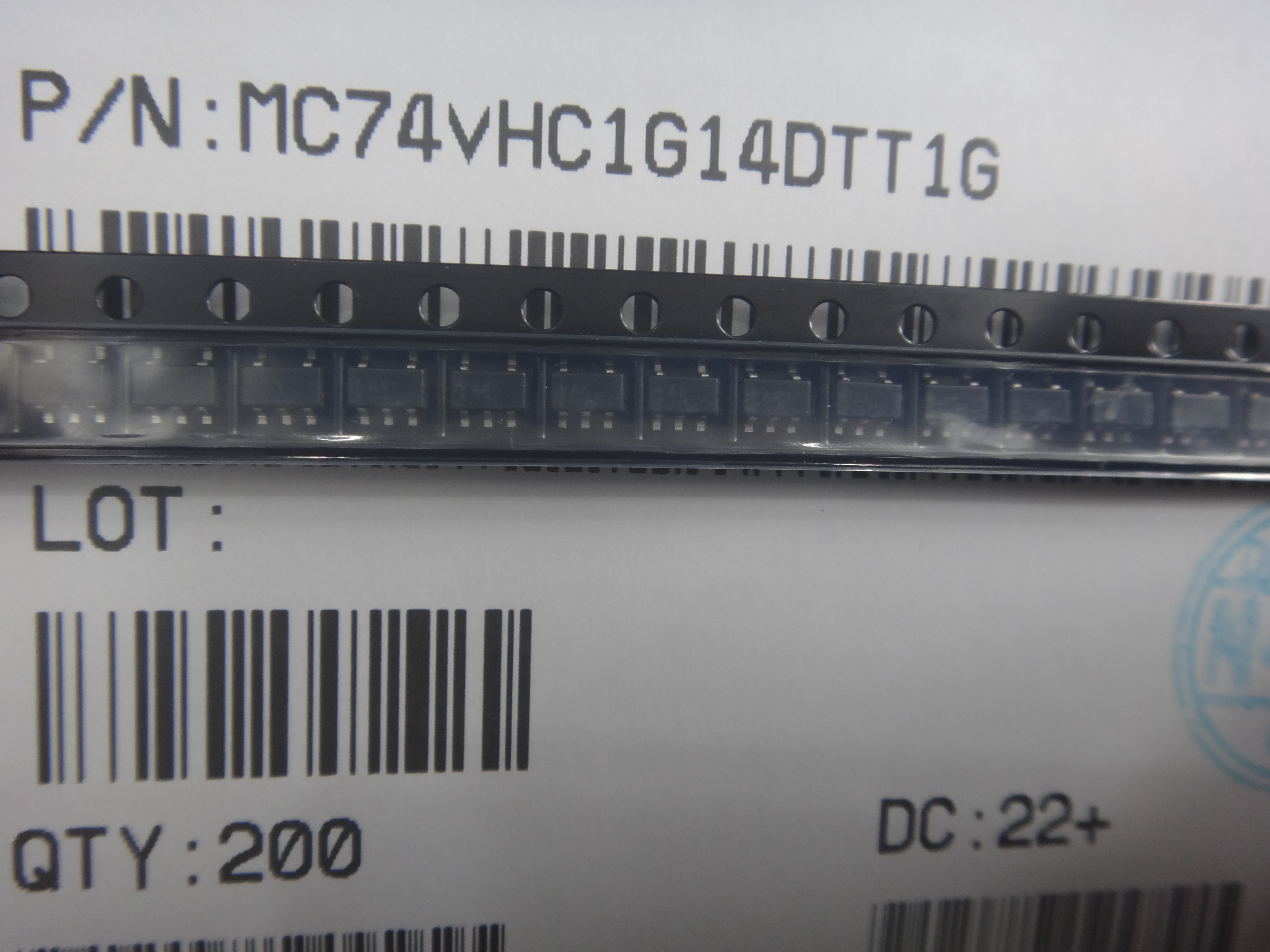

Model:MC74VHC1G14DTT1G
Model:MC74VHC1G14DTT1G
Manufacturer：Onsemi
Stocks：20000
Describe：
Single-channel Schmidt trigger inverter. Its core function is to invert the slowly changing or noisy input signal into a clean and steep digital signal, which is commonly used in waveform shaping, signal conditioning and anti-interference circuits.
Features ：
• Wide voltage and low power consumption: Operating voltage range 2V to 5.5V, with a static current (Iq) as low as 1µA.
• Schmitt trigger input: Features hysteresis, effectively suppressing input noise and interference, and enhancing system stability.
• High drive capability: Output sourcing and sinking currents both reach ±8mA.
• Fast propagation: Typical propagation delay (tpd) of 5.5ns @ 5V with a 50pF load.
• Wide temperature operation: Industrial temperature range of -55°C to +125°C, suitable for harsh environments.
• Small package: Utilizes a 5-TSOP (SOT-23-5 Thin) surface mount package, with a compact size.
Application：
It is widely used in industrial control, automotive electronics, consumer electronics (such as portable devices, smart home appliances), signal processing, battery-powered systems, and other scenarios where signal shaping, buffering, and anti-interference processing are required.
